Scanner UP560 - Up3D
Dental Scanner UP560 - Up3D
- Ultra high speed, true color texture, and RPDs' assistant
- UP560 achieves new upgrade based on UP360 series. With dual 3 megapixels cameras (high frame rate), realizes faster and clearer capture image, and provides more efficient and accurate data for the digital dental industry. It takes
- 17 sec for 12-units die scan
- 21 sec for All in one scan
- 15 sec for Full arch scan.
- Scan model without blind angle
- Color texture
- Open System - compatible .ply format file, import true color texture file to 3shape and Exocad system directly.
- Handheld occlusion scan

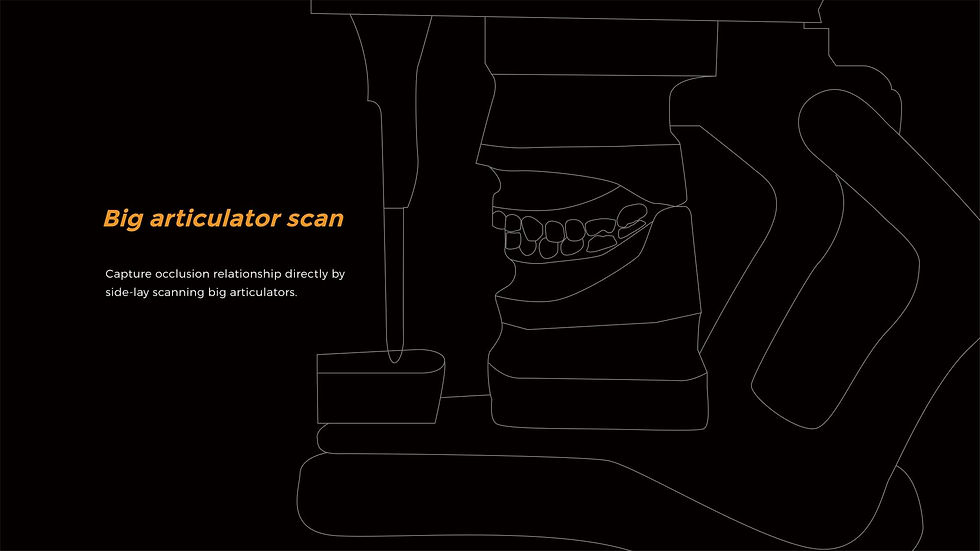

- Big articulator scan - capture occlusion relationship directly by side-lay scanning big articulators.
- Wide applications
- UPSCAN app - Easy to operate scanning software, free upgrade.
- Margin line - Draw margin line in UPSCAN nd export margin data to design software
- Open System - Open stl output and integrated with exocad and dentalwings
Specifications
- Size : 305x310x550 (mm)
- Weight : 14 kg
- Cameras : Dual 3.0 MP (high frame rate)
- Accuracy : <5 microns
- Projector : Customized blue light, multi-color scanning
- Interface : USB 3.0
- Output format : STL; UM; PLY; OBJ
- Power Supply : AC110-240V. 50 Hz
- All in one scan
- One click Scanning triple tray
- Functions :
- Detect margin line
- True color texture scan
- Impression scan
- Unsectioned models scan
- Made in China
